| SPECIFICATION |
|---|

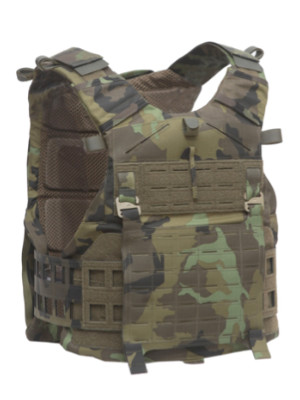

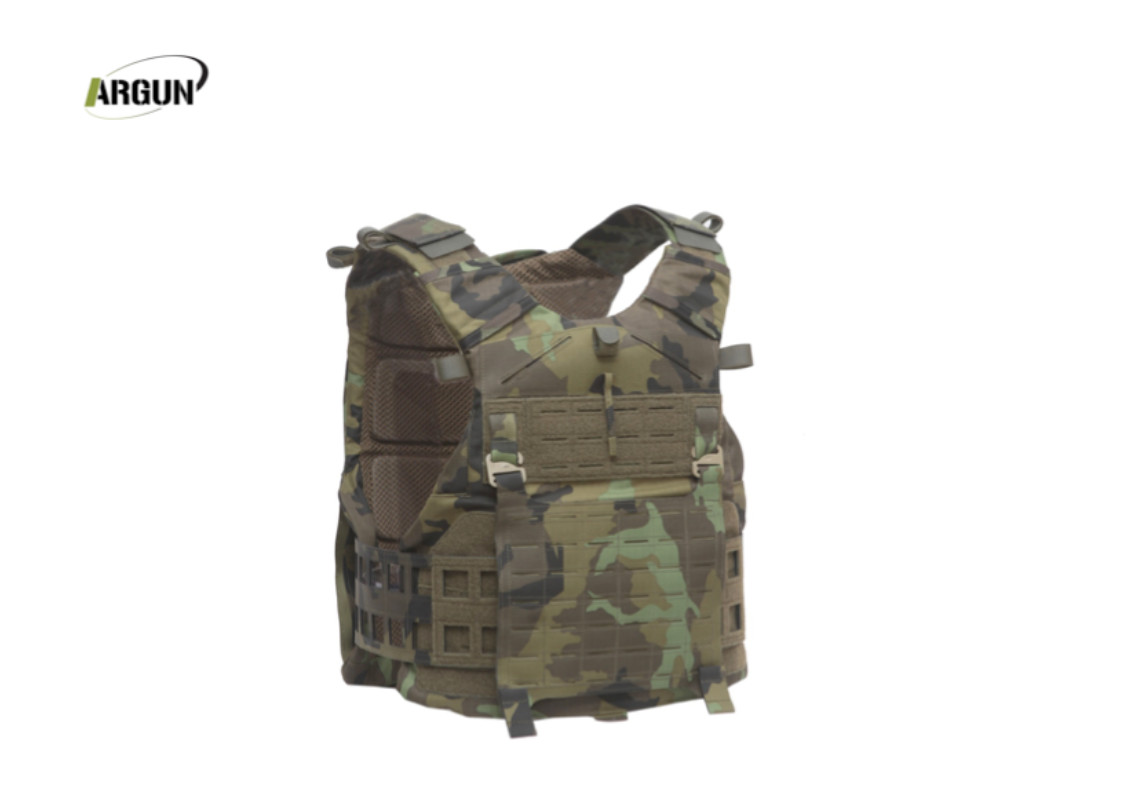

| Soft ballistic panels at the front, back and sides parts of the vest. |
| Front, back and sides pockets for hard ballistic panels. |
| Steel wire Quick release system. |
| Size adjustment in side and shoulder parts. |
| Additional neck, groin, shoulders and arms protectors. |
| Additional ballistic belt. |
| Admin pocket on the front part of the vest. |
| Laser-cut Molle system on the front, back and sides parts of the vest. |
| Fastening of the vest in shoulder part is from back to front direction. |
| Rescue handle (tested for 150 kg). |
| Three types of side parts (full with ballistic protection, webbing and very light laser-cut Molle). |
| 3 liters camel bag simply to fix on the back side of the vest by G buckles. |
| Small water camel bag could be fix on the inner side of the side part by Molle system. |
| Exchangeable front platforms (only Molle system; with three magazines pouches for M16/M4/BREN/AK-47) |
| Back platform for four flash grenade and big pocket. |
| Protective area of the vest without additional protectors: |
|---|
| Approx. area: L size: 3 122 cm |
| Fixed, precise and stable clamping according to physical parameters |
| Ballistic protection: |
|---|
| level of ballistic protection: III.A according to the NIJ 0101.04 |
| levels of ballistic protection according to the soft ballistic panels ARMAX soft ballistic panels |
| higher ballistic protection by hard ballistic panels |
| Options: |
|---|
| Size: XS, S, M, L, XL, XXL |
| Additional protectors: Neck, groin, shoulders and arms. |
| Ballistic belt. |
| Carrying bag |
| Level | Calibre | Weapon | Bullet Weight | Bullet Velocity V2.25)+ 9.14 ms | Distance | Max. Depth (mm) |
|---|---|---|---|---|---|---|
| I | .22LR | LRN, Remington | 2.6 g (40 grain) | 329 | 5 m | 44 |
| I | .380 ACP | FMJ RN, Remington R380AP | 6.2 g (95 grain) | >322 | 5 m | >44 |
| IIA | 9 mm | FMJ RN, Remington R9MM2 | 8.0 g (124 grain) | 341 | 5 m | 44 |
| IIA | 40 S&W | FMJ, Winschester B40TC180 | 11.7 g (180 grain) | 322 | 5 m | 44 |
| II | 9 mm | FMJ N, Remington R9MM2 | 8.0 g (124 grain) | 367 | 5 m | 44 |
| II | .357 Mag | JSP, Remington R335M3 | 10.2 g (158 grain) | 436 | 5 m | 44 |
| IIIA | 9 mm | FMJ RN, Remington R9MM2 | 8.0 g (124 grain) | 436 | 5 m | 44 |
| II | .44 Mag | SJHP, Remington R44MG3 | 15.6 g (240 grain) | 436 | 5 m | 44 |
