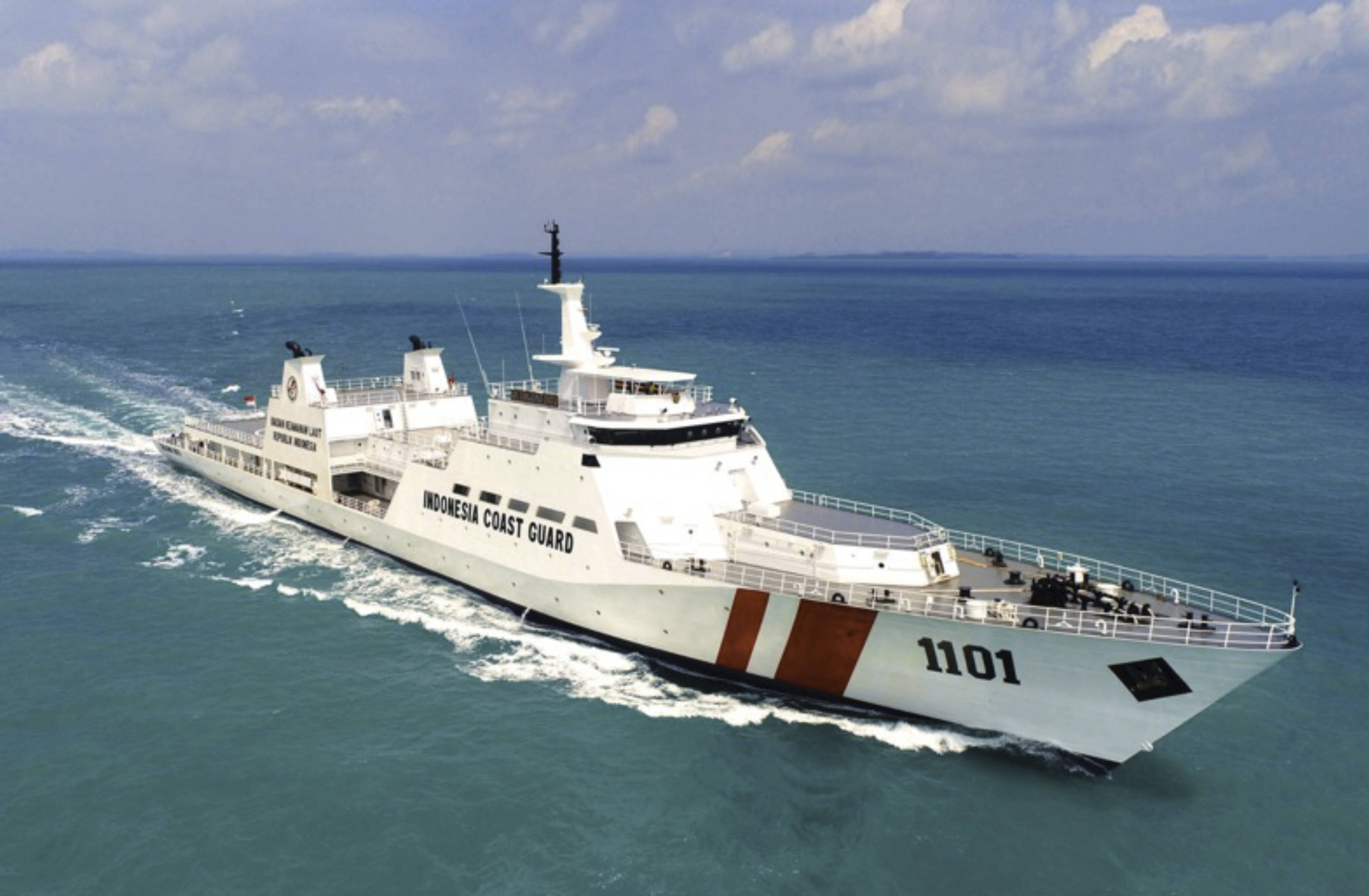

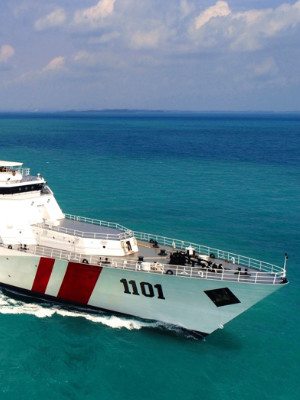

1101 OPV



Download The Brochure

We are an exclusive manufacturer of 1101 OPV for selected territorial markets.

Basic Info Technical Data
Material Hull Steel Marine Grade A
Superstructure Aluminium Marine Grade A
Loa 110,000 M
B mld 15,50 M
H mld, Midship 6,90 M
Draft 3,80 M
Displacement 2450 Ton
Heli Deck 8 Ton
Main Engine 2 x 5300 Hp
Auxilicry Engine 4 x 250 KVA
Main Fuel Oil 264 m3
Fresh Water Capacity 253 m3
Speed Max 22.00 Knot
Speed Cruising 15,00 Knot
Endurance +/- 2500 nm @ 12 Knot

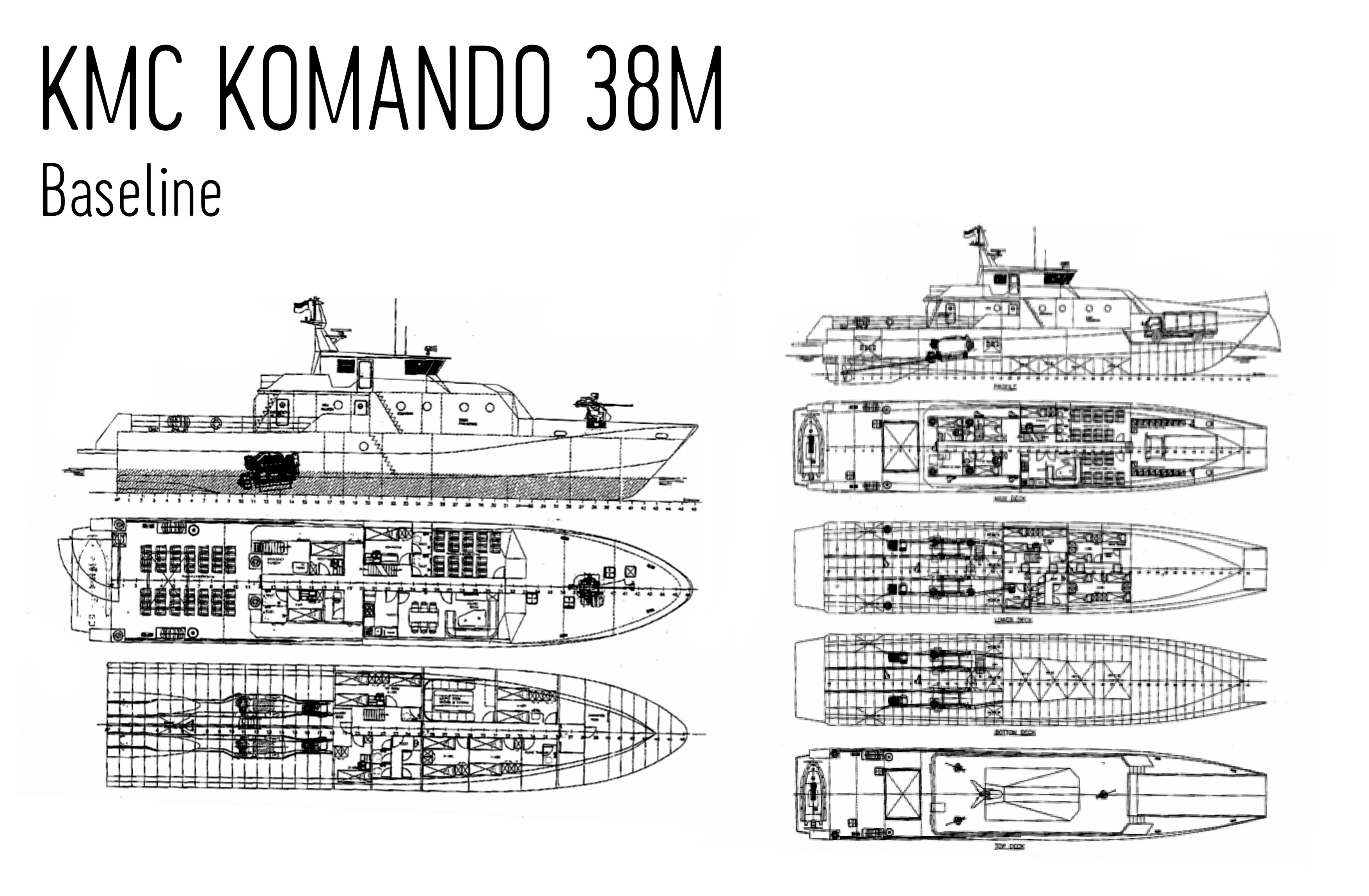

KMC Komando 38M

Tab Card Three

Fast Missile

KRI CLURIT - 645
KRI KUJANG - 646
KRI BELADAU - 647



Download The Brochure

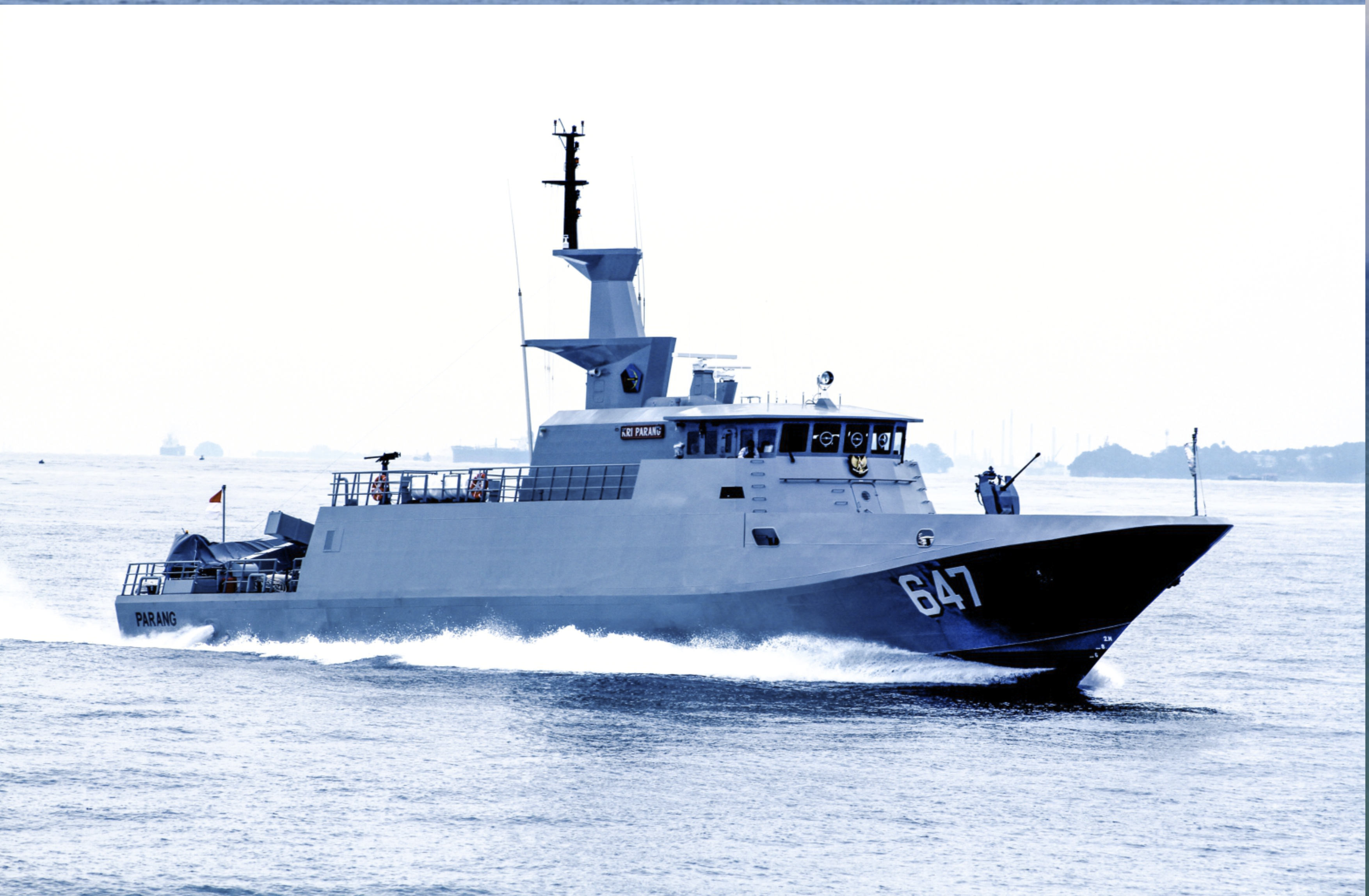

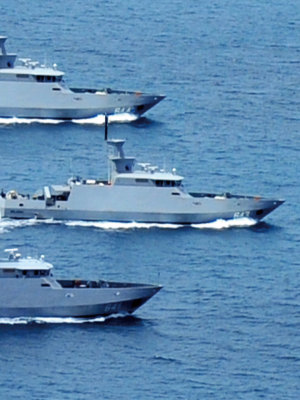

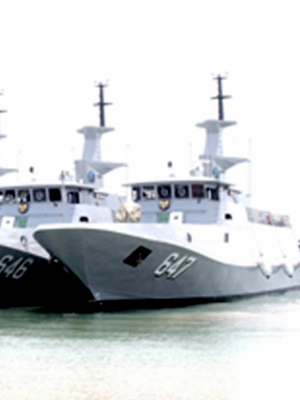

Ship Name: KRI SURIK - 645, KRI SIWAR - 646, KRI PARANG - 647

Material Hull High Tensile Steel
Superstructure Alamunium Marine Grade
Loa 45,60 M
B mld 7,40 M
H, mld Midship 3,40 M
Draught 1,70 M
Speed Max 29 knots
Main Engine 3 x MAN V12 @1800 HP
Crew Accommodation Officer 7 Beds, Rating 28 Beds, Kopaska 8 Beds
Fuel Oil Capacity 50,000 Liter
Fresh Water Capacity 15,000 Liter
Gross Tonnage 293 Tons

KMC Komando 38M

Tab Card Three

Fast Missile

KRI CLURIT - 641
KRI KUJANG - 642
KRI BELADAU - 643
KRI ALAMANG - 644



Download The Brochure

Ship Name: KRI CLURIT - 641, KRI KUJANG - 642, KRI BELADAU - 643, KRI ALAMANG - 644

Material Hull High Tensile Steel
Superstructure Alamunium Marine Grade
Loa 44,00 M
B mld 7,40 M
H, mld Midship 3,40 M
Draught 1,70 M
Speed Max 29 knots
Main Engine 3 x MAN V12 @1800 HP
Crew Accommodation Officer 7 Beds, Rating 28 Beds, Kopaska 8 Beds
Fuel Oil Capacity 50,000 Liter
Fresh Water Capacity 15,000 Liter
Gross Tonnage 293 Tons

KMC Komando 38M

Tab Card Three
